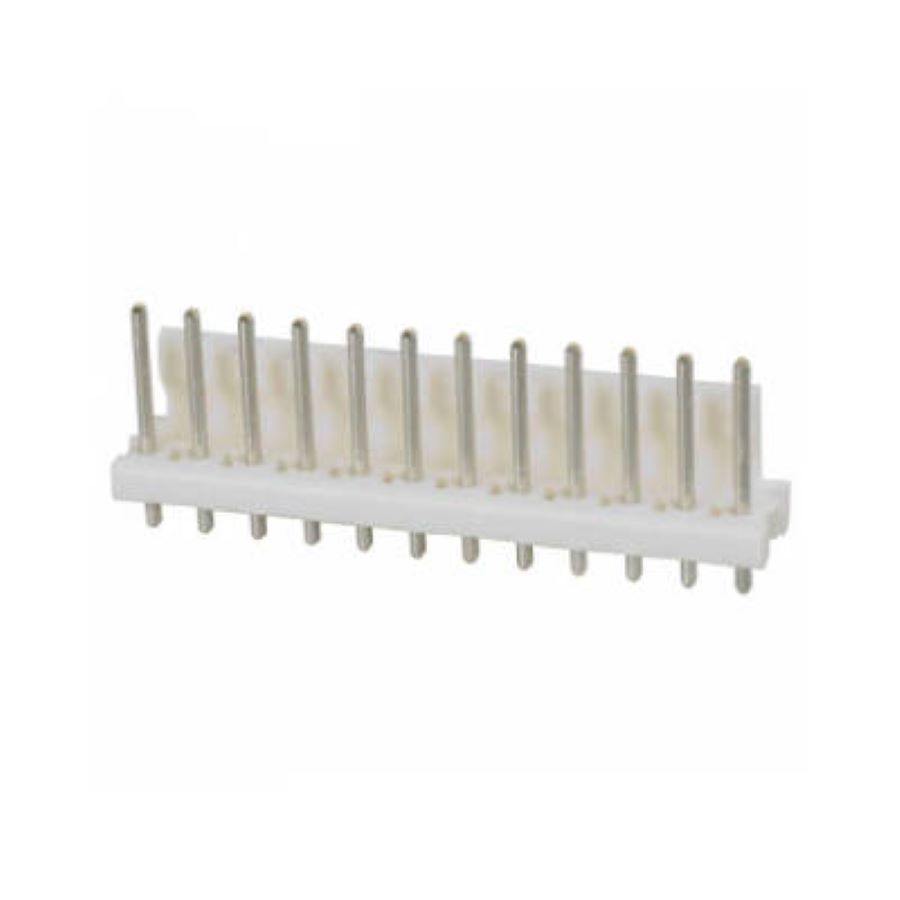

1-640388-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1-640388-2
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:12 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Length | 47.5488 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 10.79 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 7.62 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 3.18 mm |
| Pitch | 3.96 mm |
| Current Rating | 7 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 12 |
| Connector Type | Header |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Fastening Type | Friction |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Resistance | 3 mΩ |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 7 A |
| Housing Color | Natural, White |
| Plating | Tin |
| shrouded | No |
| Contact Mating Length | 10.16 mm |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 63 µm |
| Plating Thickness | 2.54 µm |
| Contact Gender | Male |
| Number of Power Positions | 12 |
| Mating Post Length | 10.16 mm |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| Contact Retention | Without |
| Termination Post Length | 3.18 mm |
Stock: 294
Distributors
pcbx
pcbxUnit Price$0.58819
Ext.Price$0.58819
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.58819 | $0.58819 |
| 10 | $0.40780 | $4.07800 |
| 25 | $0.36078 | $9.01950 |
| 50 | $0.35736 | $17.86800 |
| 100 | $0.35650 | $35.65000 |
| 300 | $0.35565 | $106.69500 |
| 500 | $0.35480 | $177.40000 |
| 1000 | $0.29923 | $299.23000 |
